Design and welding of aluminum alloy observation door

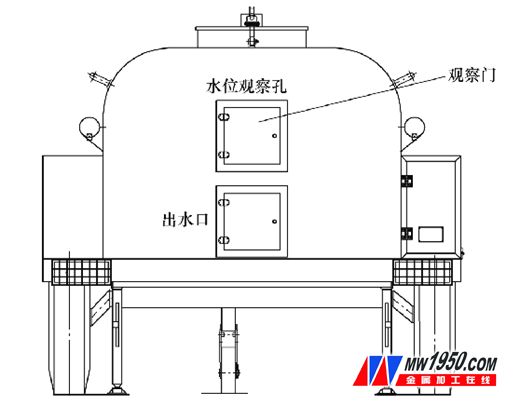

Aluminum and its alloys are widely used in various industries due to their excellent corrosion resistance, high specific strength, good electrical and thermal conductivity. They are commonly found in aerospace, automotive, machinery manufacturing, and chemical sectors. Our company produces a water transport trailer designed for camping water supply, integrating water storage, transportation, and distribution. It is primarily used for supporting water supply operations. The trailer features two observation ports on the back of the cabinet, each equipped with an observation door (as shown in Figure 1). Given the need for high-quality appearance, moderate strength, good plasticity, and strong corrosion resistance, the observation doors are made from aluminum-magnesium-silicon alloy 6063, which offers a balance between durability and aesthetics.

Figure 1

Structural Analysis The observation door consists of an outer frame and an inner door, as illustrated in Figure 2. The inner door includes a door inner frame, an outer panel, an inner panel, an insulating layer, and a door lock. The outer frame and inner door are connected using stainless steel long hinges, ensuring stability and ease of use. The outer frame is fabricated through profile cutting, and its structure is shown in Figure 3. The inner frame is also constructed using profile materials, and its design is displayed in Figure 4.

Figure 2
1. Blind rivet φ5mm×15mm 2. Blind rivet φ4mm×8mm
3. Door frame 4. Blind rivet φ3.2mm×8mm 5. Stainless steel long hinge
6. Door inner frame 7. Door outer cover 8. Insulation layer 9. Door lock 10. Door inner surface 11. Sealing strip

Figure 3

In addition to its structural design, the observation door is engineered to ensure smooth operation and long-term performance. The use of high-quality components such as blind rivets and sealing strips enhances the door’s functionality and weather resistance. This design not only meets the technical requirements but also contributes to the overall aesthetic appeal of the water transport trailer, making it a reliable and visually pleasing solution for water supply support.
